I. Product Core Positioning

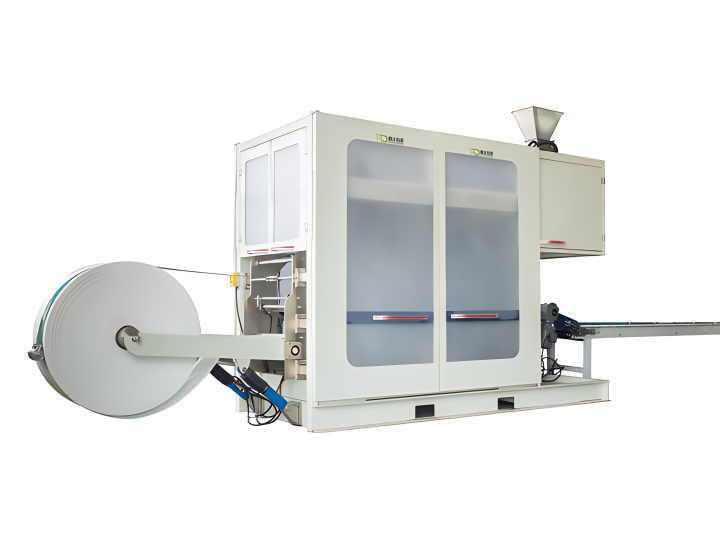

FFS600 Bagging Machine is a fully automatic integrated equipment designed by Fly-Pack Factory for high-speed packaging of powders, granules and loose materials. It adopts Form-Fill-Seal (FFS) heavy film packaging technology to realize the automation of the whole process of bag making → filling → sealing, and is suitable for the 10-50kg large-capacity packaging needs of chemical, food, building materials and other industries. The single-machine speed of FFS600 Bagging Machine reaches 600-800 bags/hour, and it is compatible with PE heavy film (thickness 0.15-0.3mm), degradable film and M-shaped folding bags. The sealing strength is ≥55N/cm², and the dust overflow rate is ≤0.01%, which significantly improves production efficiency and environmental protection standards.
II.Core technology advantages
Intelligent dynamic control and precise weighing
FFS600 Bagging Machine integrates AI visual positioning and industrial Internet of Things (IIoT) technology to detect material fluidity (powder/granules) and film bag forming status in real time, dynamically adjust bag size (length 500-1000mm × width 300-600mm) and filling speed, and error accuracy ≤±0.5%. The servo drive system is combined with dynamic weighing compensation technology, and the weight error of a single bag is ≤±10g, meeting the high-precision requirements of the food and pharmaceutical industries.
Multi-scenario adaptation and clean production
·Dust-proof design: FFS600 Bagging Machine has a fully enclosed body and a labyrinth exhaust system, with a dust concentration of ≤0.1mg/m³, which supports pollution-free packaging of corrosive chemical powders (such as resins and dry-mixed mortars). ·Fast changeover: FFS600 Bagging Machine can switch film rolls within 10 minutes, supports M-shaped folding bags, flat bags and other bag types, and is suitable for high-temperature sterilization (80-300℃) and low-temperature moisture-proof environments.
Energy-saving and efficient with modular expansion.
·Energy consumption optimization: FFS600 Bagging Machine reduces power consumption by 25% in double-station parallel operation, and saves more than 15,000kWh of electricity per year in intelligent standby mode.
·Function expansion: FFS600 Bagging Machine can expand metal detection, coding traceability, and online weighing modules, and supports mixed loading mode (such as 25kg main material + 5kg gift combination).
III. Industry application scenarios
FFS600 Bagging Machine achieves efficient production in the following fields with high flexibility and stability:
·Chemical industry: Moisture-proof packaging of resin particles and fertilizers, supports automatic palletizing of M-shaped folding bags, and the stacking height can reach 12 layers. ·
Food field: Online weighing and sealing of flour and pre-prepared meal powder, in compliance with HACCP and ISO 22000 certification.
·Building materials field: Dust-proof packaging of dry-mixed mortar and putty powder, with dust control meeting EU environmental standards.
IV. Technical parameters and configuration
|
Item |
Parameter/Function |
|
Packing speed |
600-800 packs/hour (dual-channel synchronization) |
|
Packing capacity |
10-50kg (support ±5% dynamic adjustment) |
|
Weighing accuracy |
±10g (dynamic compensation system) |
|
Heat sealing strength |
≥55N/cm² (four-layer corner seal reinforcement) |
|
Machine size |
6500×2800×3500mm (304 stainless steel body) |
