I. Product Core Positioning

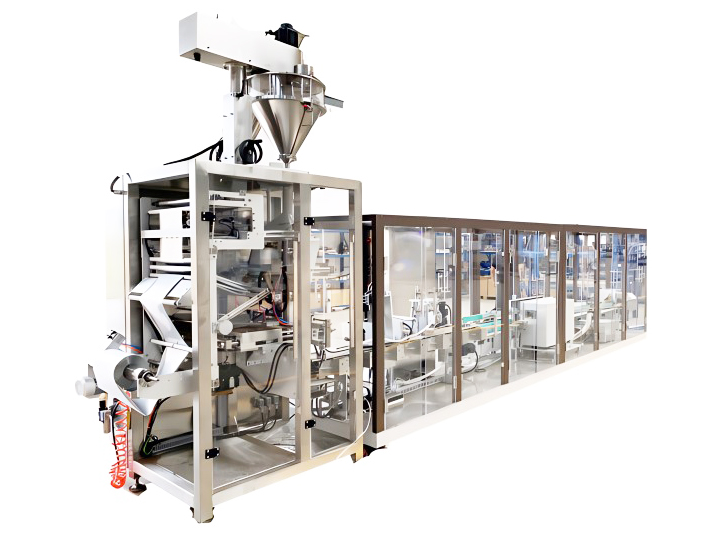

ZB500N2 Vacuum Packing is a fully automatic vertical packaging equipment designed by fly-pack factory for high-precision vacuum packaging. It is suitable for powders, granules and loose materials in the food, pharmaceutical and chemical industries, and supports 10g-50kg full-size packaging. ZB500N2 Vacuum Packing equipment integrates weighing-vacuuming-sealing integrated technology and intelligent deviation correction system. The single machine processing speed reaches 30-50 bags/minute, the vacuum degree is ≤5kPa, and it is suitable for prefabricated brick bags and composite film materials. It complies with ISO 9001, CE and HACCP certification standards.
II. Core Technology Advantages
Fully automatic vacuum packaging and dynamic compensation
ZB500N2 Vacuum Packing adopts a double-chamber alternating vacuum system and a ten-head combined weighing unit. Through AI algorithm, it corrects the flowability difference in real time, with a measurement accuracy of ±0.5g, solving the problem of powder agglomeration or particle stratification.
Robot arm bagging positioning: ZB500N2 Vacuum Packing error ≤±0.3mm, supports high-speed switching between stand-up bags and back-sealed bags.
Clean packaging and high-efficiency energy consumption
Double pulse sealing technology: ZB500N2 Vacuum Packing temperature control 100-200℃ (±1℃ accuracy), sealing strength ≥60N/15mm, suitable for high barrier materials such as aluminum-plastic film; Fully enclosed negative pressure dust removal: ZB500N2 Vacuum Packing dust residue rate ≤0.01%, meeting GMP clean workshop requirements.
Flexible production and intelligent operation and maintenance
5-minute quick changeover: ZB500N2 Vacuum Packing is suitable for bag widths of 80-300mm and supports mixed-line production of multiple categories; IoT energy efficiency management: ZB500N2 Vacuum Packing monitors vacuum pumps and servo motors in real time, saving more than 10,000kWh of electricity per year.
III. Industry application scenarios
ZB500N2 Vacuum Packing is widely used in the following applications due to its high vacuum degree and low breakage rate: Food industry: Moisture-proof nitrogen-filled packaging of milk powder and coffee powder, supporting QR code traceability labels; Medical field: Aseptic vacuum packaging of Chinese medicine powder and testing reagents; Chemical industry: Anti-oxidation brick-shaped bag packaging of Yuanming powder and water-soluble fertilizer.
IV. Technical parameters and configuration
|
Item |
Parameter/Function |
|
Processing speed |
30-50 bags/minute (double chamber alternation) |
|
Vacuum |
≤5kPa (residual oxygen ≤0.5%) |
|
Measuring range |
10g-50kg (dynamic compensation) |
|
Sealing temperature control |
100-200℃ (±1℃ accuracy) |
|
Machine size |
5500×2800×3200mm (304 stainless steel body) |
