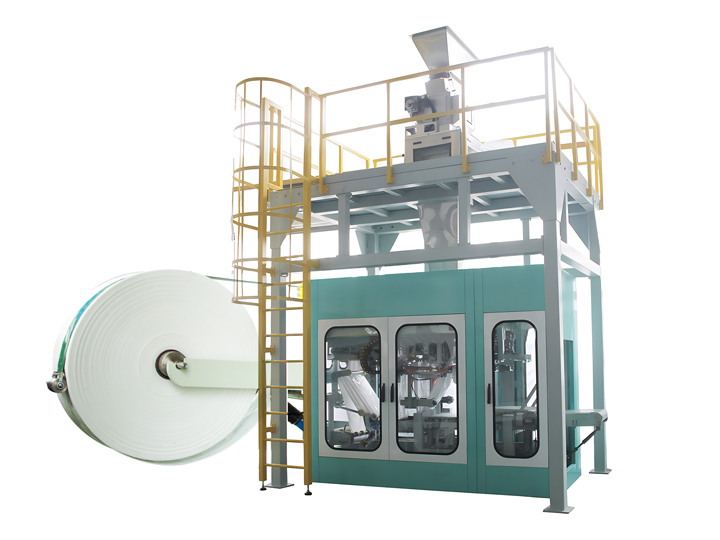

Smart FFS Tubular Automatic Fill and Seal Bagging Machine: Elevating Packaging Efficiency to New Heights

 ‌I.  Product Core Positioning‌

FFS Tubular Form Fill and Seal Bagging Machine (Tube Bag Making-Filling-Sealing Integrated Packaging Machine) is a heavy film packaging equipment developed by Fly-Pack Factory based on the full process automation technology. It is designed for 10-50kg granules, powders and loose fluid materials, and is suitable for the four core industries of chemical, food, medicine and building materials. FFS Tubular Form Fill and Seal Bagging Machine uses high-performance PE/FFS heavy film materials, integrates the whole process of bag making (Form) → filling (Fill) → sealing (Seal), and has a packaging speed of up to 2000 bags/hour. The packaging material cost is 10%-50% lower than that of traditional woven bags.

‌II.Core technology advantages‌

1.‌ Fully automatic tubular bag making and high-precision filling‌

FFS Tubular Form Fill and Seal Bagging Machine controls the continuous bag making of tubular film materials through the intelligent PLC system, dynamically adjusts the bag length (300-800mm) and the sealing temperature (50-300℃), and the spiral filling technology ensures the metering accuracy ≤±0.3%, which is suitable for dry-mixed mortar, putty powder and other materials with poor fluidity‌. FFS Tubular Form Fill and Seal Bagging Machine servo drive and photoelectric positioning technology achieve film material error ≤±2mm, sealing strength ≥30N/15mm, and ensure moisture-proof and leak-proof performance‌.

2.‌ Environmental protection and cost-effectiveness‌

Packaging material innovation‌: FFS Tubular Form Fill and Seal Bagging Machine uses recyclable PE heavy film, which is better than traditional woven bags in moisture resistance and drop resistance. The square brick bag design improves stacking stability and reduces packaging material costs by 10%-50%‌. ‌Dust control‌: FFS Tubular Form Fill and Seal Bagging Machine's fully enclosed structure combined with a negative pressure dust removal system reduces dust overflow by 90%, meets GMP clean standards, and is suitable for corrosive chemical packaging‌.

3.‌Intelligent safety and flexibility‌

FFS Tubular Form Fill and Seal Bagging Machine is equipped with an interlocking emergency stop device and a labyrinth exhaust technology to reduce air residue; the modular design supports rapid changeover, is compatible with a variety of bag types such as M-type bags and stand-up bags, and switches packaging specifications (10-50kg) with one click‌.

‌III. Industry application scenarios‌

FFS Tubular Form Fill and Seal Bagging Machine has excellent performance in the following fields due to its high efficiency, moisture-proof, and corrosion-resistant characteristics:

·‌Chemical industry‌: Anti-oxidation sealed packaging of polyethylene particles, resins, and fertilizers, and dust-free filling suitable for corrosive additives‌.

·‌Food industry‌: Moisture-proof packaging of flour, milk powder, and starch, supporting high-temperature sealing processes (50-300℃)‌. ·Pharmaceutical industry: Clean and dust-free packaging of pharmaceutical raw materials and disinfectant powders, in compliance with GMP workshop standards 34.

·Building materials industry: High-precision filling of dry-mixed mortar and cement additives to solve the problem of loose material packaging.

‌IV.  Technical parameters and configuration

‌
