High-Efficiency Vertical Packaging Machine VFS720A, Setting a New Benchmark for Professional Packaging!

 ‌I. Product Core Positioning‌

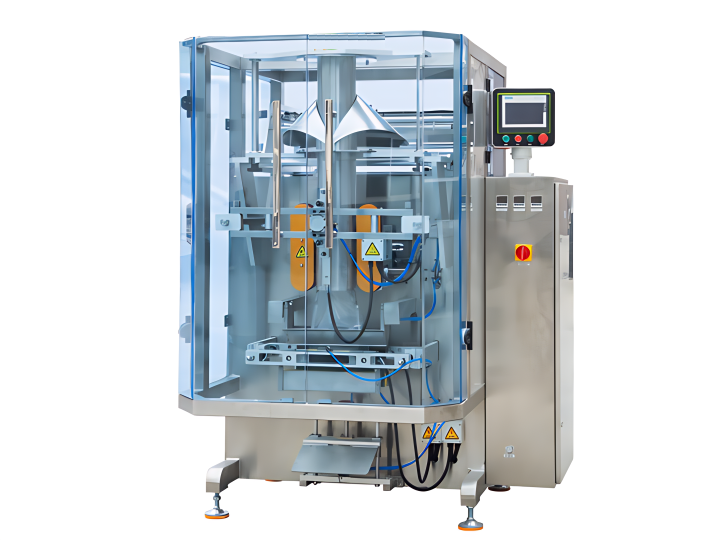

Vertical Packaging Machine VFS720A is a new generation of vertical forming-filling-sealing (VFFS) equipment developed by fly-pack factory for the demand of high-speed vertical packaging. It is designed for powder, granular and liquid materials in the food, pharmaceutical and daily chemical industries, and supports full-size packaging of 50g-25kg. Vertical Packaging Machine VFS720A integrates servo-driven continuous packaging technology and intelligent control system. The single-machine processing speed reaches 80-120 bags/minute, and the metering accuracy is ±0.2%. It is suitable for PET/AL/PE composite film, co-extruded film and environmentally friendly degradable materials, and complies with ISO 9001, CE and HACCP certification standards.

‌II. Core Technology Advantages‌

‌High-speed continuous forming and precise metering‌

Vertical Packaging Machine VFS720A adopts a dual-channel spiral metering system and a vacuum film pulling mechanism to achieve dynamic compensation filling, with an error rate of ≤±0.3g, solving the metering deviation problem caused by material fluidity differences in traditional equipment.

‌Film deviation correction module‌: fully automatic photoelectric color mark tracking system, positioning accuracy ±0.5mm, suitable for complex pattern films‌.

‌Intelligent sealing and anti-pollution design‌

‌Low-temperature pulse sealing technology‌: temperature control range 80-180℃ (±1℃ accuracy), support for sealing of heat-sensitive materials such as PE and aluminum-plastic film, strength ≥50N/15mm‌; ‌Negative pressure dust removal system‌: fully enclosed filling bin and static elimination device, dust overflow rate ≤0.01%, meet GMP clean workshop requirements‌.

‌Modular expansion and energy consumption optimization‌

‌Quick changeover function‌: complete bag type switching within 10 minutes (suitable for 100-400mm bag width), support multi-form packaging such as gusseted bags and square bottom bags‌; ‌Low energy consumption operation‌: standby power consumption ≤1.5kW, annual power saving exceeds 12,000kWh, suitable for 24-hour continuous production‌.

‌III. Industry Application Scenarios‌

Vertical Packaging Machine VFS720A is widely used in the following applications due to its high compatibility and stability:

‌Food Industry‌: Moisture-proof and nitrogen-filled packaging of coffee powder and seasonings, supporting QR code traceability labels‌; ‌Medical Field‌: Aseptic vacuum packaging of granular granules and Chinese medicine powders‌; ‌Daily Chemical Industry‌: Anti-oxidation high-speed packaging of laundry detergent and chemical granules‌.

‌IV. Technical Parameters and Configuration
