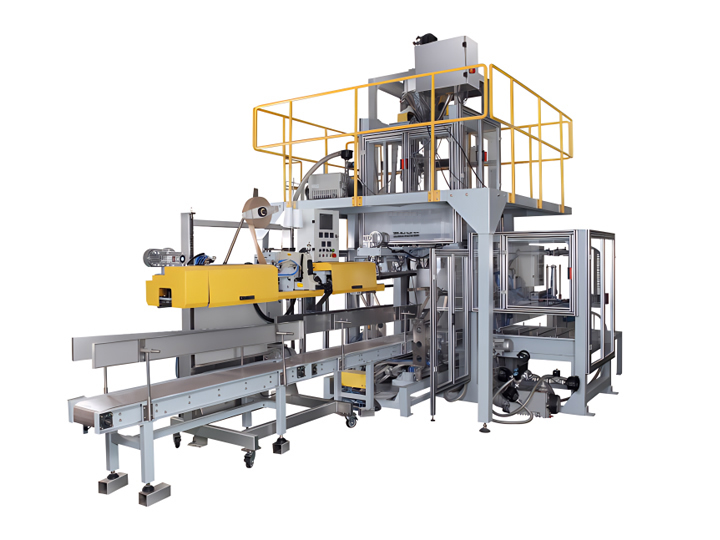

GFCKF25L Powder Open-Mouth Bagger: Meeting Industrial-Grade Packaging Needs

 ‌I. Product Core Positioning‌

GFCKF25L Powder Open-Mouth Bagger is a fully automatic solution developed by the ply-pack factory for the bagging and packaging needs of highly viscous powders and materials that are prone to agglomeration. It is suitable for the precise measurement and clean filling requirements of 25kg-level powders (such as polypropylene powder, starch, and pharmaceutical excipients) in the chemical, food, and pharmaceutical industries. The GFCKF25L Powder Open-Mouth Bagger equipment integrates the entire process of feeding → weighing → filling → sealing → dust removal. The single-machine processing speed reaches 45-65 bags/hour, the weighing accuracy is ±0.3%, and the dust overflow rate is ≤0.08mg/m³. It supports the rapid switching between valve bags and open bags, significantly improving production efficiency and environmental compliance.

‌

‌ ‌II.  Core technology advantages‌

‌High viscosity powder anti-blocking technology‌

GFCKF25L Powder Open-Mouth Bagger adopts a twin-screw vibration feeding system and AI dynamic compensation algorithm to monitor material fluidity (such as sticky powder or easy-to-cake materials) in real time, automatically adjust the screw speed and amplitude, solve the problems of material jamming and blocking in traditional packaging machines, and the weight error of a single package is ≤±30g‌.

‌Dust-free filling and flexible adaptation‌

·‌Fully enclosed dust removal design‌: GFCKF25L Powder Open-Mouth Bagger is equipped with a four-stage negative pressure dust removal module (filtration efficiency ≥99.98%), which is suitable for corrosive powders (such as calcium carbonate) and flammable dusts (such as lithium battery materials), and the dust concentration is ≤0.08mg/m³‌.

·‌Fast changeover function‌: GFCKF25L Powder Open-Mouth Bagger can complete bag type switching (valve bag/M-shaped gusset bag) within 15 minutes, supports packaging materials such as PE film and composite aluminum foil film, and heat sealing strength ≥60N/cm²‌.

‌Modular expansion and intelligent control‌

·‌Functional expansion‌: GFCKF25L Powder Open-Mouth Bagger can integrate metal detection, batch traceability coding, and automatic palletizing modules, and supports mixed loading mode (such as 25kg main material + independent small package catalyst)‌.

·‌Energy saving optimization‌: GFCKF25L Powder Open-Mouth Bagger intelligent standby power consumption is reduced by 40%, annual power saving exceeds 15,000kWh, and is suitable for 24-hour continuous production needs‌.

‌III. Industry application scenarios‌

GFCKF25L Powder Open-Mouth Bagger is widely used in the following fields due to its high precision and stability:

·‌Chemical industry‌: moisture-proof packaging of polypropylene powder and flame retardants, suitable for high temperature and high humidity environments‌.

·‌Food field‌: clean filling of starch and seasoning powder, in compliance with ISO 22000 and HACCP certification‌.

·‌Pharmaceutical industry‌: dust-free packaging of pharmaceutical excipients and microcrystalline cellulose, supporting GMP clean workshop standards‌.

‌IV. Technical parameters and configuration
