Professional GFCF25L Powder Open-Mouth Bagging Equipment: Creating a Stable Packaging Production Line!

 ‌I. Product Core Positioning‌

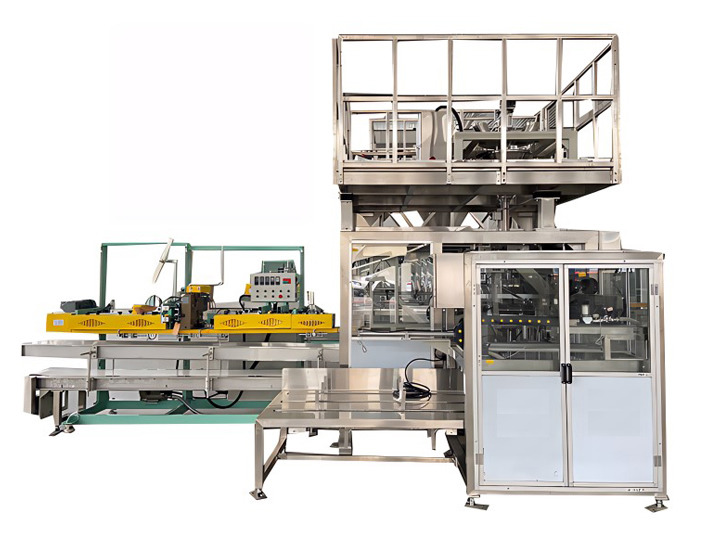

GFCF25L Powder Open-Mouth Bagger is a fully automatic valve bag packaging equipment developed by fly-pack factory for the efficient bagging and packaging needs of powder materials. It is specially designed for the chemical, food and building materials industries to provide accurate metering, fast filling and sealing solutions for 25kg powder (such as polyethylene granules, flour, dry mixed mortar). The GFCF25L Powder Open-Mouth Bagger equipment adopts dual servo drive and dynamic weighing compensation technology. The single machine speed reaches 40-60 bags/hour, the weighing accuracy is ±0.5%, and it supports automatic bagging and dust-free filling of open bags. The dust overflow rate is ≤0.1mg/m³, which significantly improves packaging efficiency and environmental protection standards.

‌II.Core technology advantages‌

‌Intelligent dynamic weighing and error control‌

GFCF25L Powder Open-Mouth Bagger integrates high-precision weighing sensors (resolution ≤1g) and PLC intelligent algorithms to monitor material fluidity (such as ultrafine powder or granules) in real time, dynamically adjust filling speed and vibration frequency, single bag weight error ≤±50g, suitable for sticky powders (such as chemical resins) and dust-prone materials (such as talcum powder).

‌Dust-free filling and flexible adaptation‌

·‌Dust-proof design‌: GFCF25L Powder Open-Mouth Bagger fully enclosed filling chamber with negative pressure dust removal system (air volume 800-2500m³/h), dust concentration ≤0.1mg/m³, supports pollution-free packaging of corrosive powders (such as calcium carbonate). ·‌Fast changeover‌: GFCF25L Powder Open-Mouth Bagger can switch bag types within 10 minutes (supports valve bags and M-shaped gusset bags), with adjustable heat sealing temperature (80-200℃), and is compatible with PE film, degradable film and other packaging materials.

‌Modular expansion and energy-saving and high efficiency‌

·‌Function expansion‌: GFCF25L Powder Open-Mouth Bagger can expand metal detection, coding traceability, and automatic palletizing modules, and supports mixed loading mode (such as 25kg main material + independent small package gifts).

·‌Energy consumption optimization‌: GFCF25L Powder Open-Mouth Bagger's intelligent standby mode reduces power consumption by 30%, saving more than 10,000kWh per year‌.

‌III. Industry application scenarios‌

GFCF25L Powder Open-Mouth Bagger is suitable for the following scenarios due to its high compatibility and stability:

·‌Chemical industry‌: Moisture-proof packaging of polyethylene granules and resin powder, supporting automatic bagging and online sealing‌.

·‌Food field‌: Accurate weighing of flour and pre-prepared meal powder, in compliance with HACCP and ISO 22000 certification‌.

·‌Building materials field‌: Dust-proof packaging of dry-mixed mortar and putty powder, suitable for high dust environments‌.

‌IV. Technical parameters and configuration
