I. Product Core Positioning

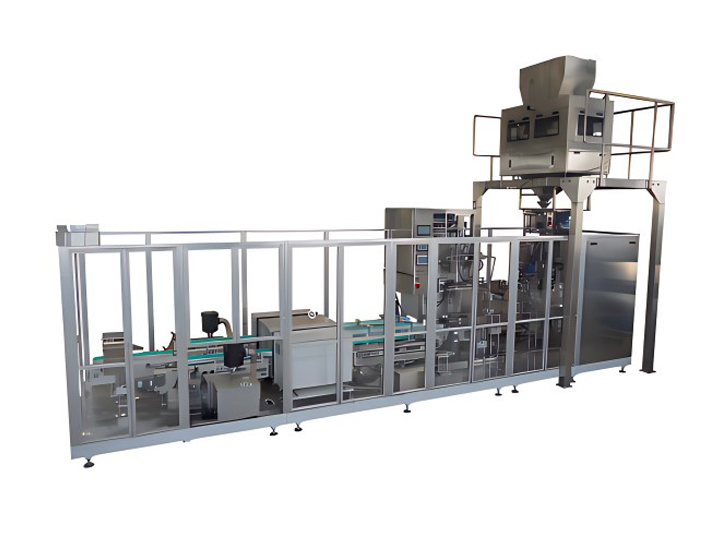

Brick Bag Vacuum Packaging Machine is a fully automatic vacuum packaging equipment developed by Ply-Pack for high-density stacking and anti-oxidation needs. It is designed to provide high-precision vacuum sealing solutions for food, medicine, chemical, electronics and other industries. Brick Bag Vacuum Packaging Machine uses prefabricated brick bags (size range: length 150-500mm, width 80-300mm), integrates the entire process of vacuuming → heat sealing → cooling, supports packaging speeds up to 20 bags/minute, and vacuum levels can reach below 5mbar, significantly extending product shelf life and improving storage efficiency.
II.Core technology advantages
1. Fully automatic vacuum sealing process
Brick Bag Vacuum Packaging Machine controls vacuum time (5-30 seconds), heat sealing temperature (100-250℃) and cooling time through intelligent PLC system, dynamically adjusts parameters to adapt to different materials (such as sauces, granules, powders), and seal strength ≥35N/15mm to ensure leak-proof and anti-oxidation performance. Servo drive and photoelectric positioning technology achieve bag mouth alignment error ≤±1mm, adapt to aluminum foil composite film, anti-static bags and other materials.
2. Environmentally friendly design and efficient cost reduction
Packaging material compatibility: Brick Bag Vacuum Packaging Machine supports prefabricated bag types such as four-side seal, three-side seal, zipper bag, bag width 175-330mm, bag height 200-400mm, filling accuracy ±2g (≤2kg) or ±5g (＞2kg), significantly reducing packaging loss.
Dust control: Brick Bag Vacuum Packaging Machine has a fully enclosed structure + negative pressure dust removal system, which reduces the dust overflow rate by 95%, meets GMP clean standards, and is suitable for pharmaceutical raw materials and corrosive chemical packaging.
3.Intelligent safety and flexibility
Brick Bag Vacuum Packaging Machine is equipped with one-button size adjustment, abnormal air pressure alarm and double-station vacuum system, supporting two-time vacuuming process; modular design can quickly switch bag type and filling mode to meet the diverse needs of hot pot base, pickled vegetables, electronic products, etc.
III. Industry application scenarios
Brick Bag Vacuum Packaging Machine has excellent performance in the following fields with its high vacuum degree, moisture-proof and anti-oxidation characteristics:
·Food industry: Vacuum fresh-keeping packaging of meat, seafood, seasonings, and pickled vegetables, extending the shelf life by 3-5 times.
·Pharmaceutical industry: Moisture-proof and sterile packaging of granular medicines, powder raw materials, and medical reagents, meeting GMP clean workshop standards. ·
Chemical industry: Anti-oxidation seal of corrosive additives and powder coatings, suitable for PE/aluminum foil composite film.
·Electronic industry: Anti-static vacuum packaging of SMT patch trays and electronic components to improve transportation safety.
IV. Technical parameters and configuration
|
Item |
Parameter/Function |
|
Packing speed |
15-20 bags/minute (up to 1200 bags/hour) |
|
Applicable bag type |
Prefabricated brick-shaped bag (four-side seal/three-side seal/zipper bag) |
|
Filling accuracy |
±2g (≤2kg), ±5g (＞2kg) |
|
Vacuum degree |
≤5mbar (supports double-station vacuuming) |
|
Power requirement |
220V/50Hz, power ≤3kW |
|
Overall size |
3100×3000×2300mm (stainless steel body) |
