Automated Carton Sealing & Packing Line | Reduce Labor Costs 80% with Smart Packaging Machinery

 ‌I. Product Core Positioning‌

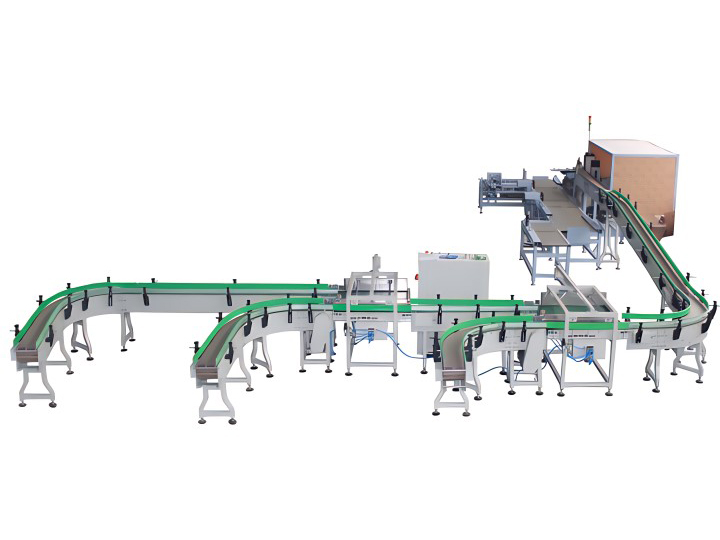

Automatic Box Packing Line is a fully automatic packaging solution developed by Ply-Pack Factory for the needs of high-speed packaging and production line integration. It is designed to provide full-process intelligent packaging services from product sorting to palletizing for industries such as food, medicine, daily chemicals, and electronics. The Automatic Box Packing Line equipment integrates the entire process of unpacking → packing → sealing → palletizing. The single-line speed reaches 150 boxes/minute. It is compatible with a variety of packaging materials such as cartons, color boxes, and shrink films. It supports mixed packaging and simultaneous processing of multiple specifications of products. The packaging accuracy error is ≤±0.3mm, which significantly improves production efficiency and packaging consistency.

‌II.Core technology advantages‌

(1).‌ Intelligent collaboration and dynamic compensation‌

Automatic Box Packing Line uses AI visual positioning system to identify product size (20-500mm) and arrangement in real time, dynamically adjust the robot arm grabbing path, and ensure accurate packing of special-shaped products (such as glass bottles and soft packaging). The servo drive system combines dynamic weighing compensation technology, and the weight error of a single box is ≤±5g, which is suitable for high-precision industries such as food and medicine.

(2).‌ Multi-packaging material adaptation and energy saving and consumption reduction‌

Flexible switching‌: Automatic Box Packing Line supports corrugated boxes (thickness 0.5-5mm), PE shrink film and degradable pallets, intelligently adjusts the sealing temperature (70-180℃), and the sealing strength is ≥60N/cm²‌.

Energy consumption optimization‌: Automatic Box Packing Line reduces power consumption by 40% in double-station parallel operation mode, and intelligent standby saves more than 7000kWh of electricity per year‌.

(3). Clean production and modular design

Automatic Box Packing Line is equipped with a dust-free filling cabin (dust concentration ≤ 0.1mg/m³) and a food-grade stainless steel body, which complies with GMP and HACCP standards; the modular structure supports rapid expansion of labeling, coding, metal detection and other functions to meet the customized needs of the pharmaceutical and electronics industries.

‌III. Industry application scenarios

Automatic Box Packing Line achieves efficient packaging in the following fields with high compatibility and stability:

·Food and beverage: mixed and assembled packaging of canned beverages and pre-prepared dishes, supporting flexible configuration of 6-24 bottles/box.

·Pharmaceutical industry: automatic packaging of drug boxes and instructions, clean room certified and supporting batch traceability code printing.

·Daily chemical field: dust-proof shrink film packaging of shampoo and refills, suitable for high-humidity workshop environments.

·Electronic products: shockproof pallet packaging of mobile phone accessories (charger + earphones), with a stacking height of up to 8 layers.

‌IV. Technical parameters and configuration‌

‌Manufacturer‌: fly-pack packaging machine factory

‌Technical certification‌: ISO 9001, CE, HACCP, GMP
