I. Product Core Positioning

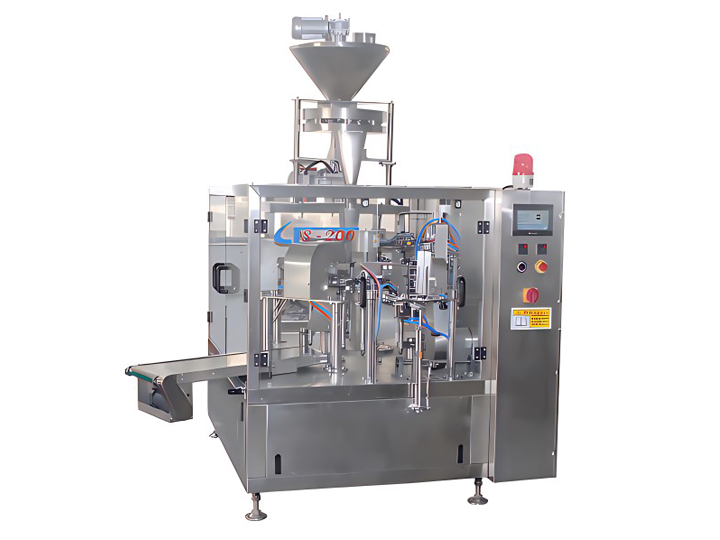

Rotary Packing Machine is a rotary fully automatic packaging equipment developed by Py-Pack Factory for the needs of continuous high-speed packaging production lines. It is designed for loose materials such as granules, powders, tablets, etc., and is suitable for large-scale production scenarios in the food, daily chemicals, pharmaceuticals and other industries. The Rotary Packing Machine adopts a rotary multi-station synchronous operation mode, integrating the entire process of filling, metering, sealing and testing. The single machine processing speed reaches 120-150 bags/minute, the weighing accuracy is ±0.1%, and it supports pre-made bags and roll film packaging, meeting ISO 9001, GMP and HACCP certification standards.
II. Core Technology Advantages
Rotary continuous operation and precise metering
Rotary Packing Machine achieves high-speed continuous packaging through an 8-station synchronous drive system, and cooperates with dual servo spiral feeding technology to dynamically adjust the material flow. The weight error of a single bag is ≤±0.5g, solving the problems of low efficiency and large precision fluctuations of traditional intermittent equipment.
Intelligent weighing compensation: The built-in AI algorithm of Rotary Packing Machine can calibrate the measurement deviation in real time, and is suitable for materials that are easy to agglomerate or have poor fluidity (such as milk powder and seasonings). Modular design and dust control Quick changeover function: Rotary Packing Machine can complete bag type switching (self-supporting bag, back-sealed bag) within 10 minutes, and supports flexible adjustment of bag width 50-200mm and bag length 80-400mm; Fully enclosed dust removal system: Rotary Packing Machine integrates three-stage negative pressure filtration (filtration efficiency ≥99.8%), and the dust overflow rate is ≤0.05mg/m³, which meets the requirements of clean workshops for medicine and food . Intelligent operation and maintenance and energy consumption optimization
Fault self-diagnosis: Rotary Packing Machine displays abnormal codes (such as film breakage, temperature abnormality) in real time through the HMI interface, and the maintenance efficiency is improved by 40%; Energy consumption management: The standby power consumption of Rotary Packing Machine is ≤0.8kW, and the annual power saving exceeds 10,000kWh, which is suitable for 24-hour continuous production needs.
III. Industry application scenarios
Rotary Packing Machine is widely used in the following fields with high speed and high stability: Food industry: 100-150 packs/minute seasoning packaging, supporting the moisture-proof requirements of aluminum foil composite film; Daily chemical field: high-speed filling of washing powder and washing beads, suitable for high humidity environment; Pharmaceutical industry: automatic counting and packaging of tablets/capsules, in line with GMP clean workshop standards.
IV. Technical parameters and configuration
|
Item |
Parameter/Function |
|
Processing speed |
120-150 bags/minute (single channel) |
|
Weighing accuracy |
±0.1% (dynamic compensation) |
|
Packaging bag type adaptation |
Stand-up bag, back-sealed bag, three-side sealed bag (film thickness 0.02-0.2mm) |
|
Power requirement |
380V/50Hz, power ≤18kW |
|
Machine size |
4500×3200×2800mm (304 stainless steel body) |
