GFCKG50 High-Performance Product: Leading the New Trend in the Packaging Industry!

 ‌I.  Product core positioning‌

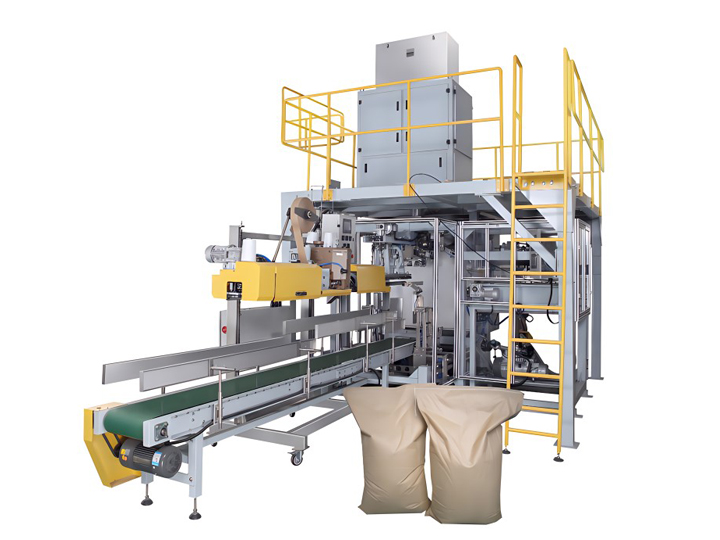

GFCKG50 is a fully automatic equipment developed by the Ply-pack factory for the packaging needs of 50kg-level granules and powders in heavy bags. It is suitable for the strict requirements of chemical, feed, building materials and other industries for high-precision and large-capacity material packaging. The GFCKG50 equipment integrates the entire process of feeding → weighing → filling → sealing → palletizing. The single machine speed reaches 8-12 bags/minute, the weighing accuracy is ±0.2%, and it supports a variety of packaging materials such as woven bags and composite film bags. The dust overflow rate is ≤0.1mg/m³, meeting ISO 9001 and CE certification standards.

‌II.Core technical advantages‌

‌High-precision dynamic weighing technology‌

GFCKG50 adopts a dual servo screw feeding system and AI dynamic compensation algorithm to calibrate material flow (such as fertilizer granules, dry mixed mortar) in real time. The weight error of a single bag is ≤±50g, which solves the weighing deviation problem caused by differences in material fluidity in traditional equipment.

‌Dust-free filling and flexible adaptation‌

‌Fully enclosed dust removal design‌: GFCKG50 is equipped with a three-stage negative pressure dust removal module (filtration efficiency ≥ 99.5%), which is suitable for high humidity and highly corrosive environments (such as chemical powders and feed additive packaging). ‌Quick changeover function‌: GFCKG50 completes bag type switching (valve bag/open bag) within 10 minutes, with a heat sealing temperature range of 80-200℃, and is suitable for woven bags (coated bags) and composite film bags (thickness ≥ 0.2mm). ‌Modular expansion and intelligent interconnection‌

‌Function expansion‌: GFCKG50 can integrate metal detection, batch traceability coding, and automatic palletizing modules, and supports linkage with AGV/RGV logistics systems to realize unmanned production lines. ‌Energy consumption optimization‌: GFCKG50''s intelligent standby mode reduces power consumption by 25%, saving more than 12,000kWh per year, and is suitable for 24-hour continuous production needs. ‌

‌III. Industry application scenarios‌

GFCKG50 is widely used in the following fields due to its high stability and compatibility:

‌Chemical industry‌: 50kg fertilizer granule packaging, suitable for high humidity environment;

‌Feed field‌: 40-50kg premix filling, in line with ISO 22000 certification‌; ‌Building materials field‌: 50kg dry-mix mortar packaging, supporting continuous production lines‌.

‌IV. Technical parameters and configuration
