GFCK-G1/G2/G3 Full Series: Crafting Ultimate Experiences, Enjoying the Charm of Technology!

 ‌I. Product core positioning‌

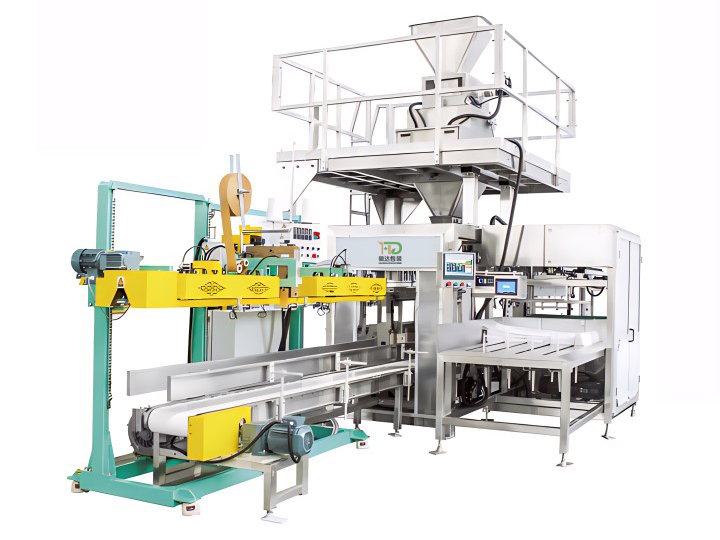

GFCK-G1/GFCK-G2/GFCK-G3 are fully automatic series equipment built by the ply-pack factory based on the demand for 10-50kg-level granules and powder heavy bag packaging, covering large-scale material packaging scenarios in the chemical, feed, building materials and other industries. This series adopts a modular design, suitable for packaging materials such as woven bags, kraft paper bags, and composite film bags, and supports the following differentiated configurations:

·‌GFCK-G1‌: 10-20kg-level high-speed packaging, accuracy of ±50g, single-machine speed of 15 bags/minute‌;

·‌GFCK-G2‌: 25-30kg-level high-precision packaging, AI dynamic compensation technology achieves ±30g error‌;

·‌GFCK-G3‌: 40-50kg-level heavy-load packaging, integrated automatic palletizing module, suitable for continuous production lines‌.

‌ ‌II. Core technology advantages‌

‌ Precise metering and high-speed filling‌

GFCK-G1/GFCK-G2/GFCK-G3 adopts a dual servo screw feeding system and a high-resolution weighing sensor (resolution ≤1g), which optimizes the filling rate and vibration amplitude in real time, solves the dust and accumulation problems of granular materials (such as fertilizers and seeds), and increases the speed of a single bag by 30%.

‌ Multi-bag type adaptation and intelligent sealing‌

·‌ Flexible switching‌: Complete bag type conversion within 10 minutes (supports folding/seam/heat sealing), heat sealing temperature range of 80-200℃, suitable for woven bags (coated) and composite film bags (thickness ≥0.18mm);

·‌ Dust removal design‌: Fully enclosed filling chamber with negative pressure dust removal module (filtration efficiency ≥99.5%), dust overflow rate ≤0.1mg/m³‌. .

‌Modular expansion and industrial interconnection‌

·‌Functional expansion‌: can integrate metal detection, coding traceability, and automatic palletizing modules, support linkage with AGV/RGV logistics systems, and realize unmanned production lines‌;

·‌Energy consumption optimization‌: intelligent standby mode reduces power consumption by 25%, saving more than 8,000kWh per year‌.

‌III. Industry application scenarios‌

GFCK-G1/GFCK-G2/GFCK-G3 are suitable for the following fields with high compatibility and stability:

·‌Chemical industry‌: 25kg fertilizer granule packaging (GFCK-G2), suitable for high humidity environment‌;

·‌Feed field‌: 40kg premix heavy bag filling (GFCK-G3), in line with ISO 22000 certification‌;

·‌Building materials field‌: 10kg dry mortar packaging (GFCK-G1), supporting continuous production lines‌.

‌IV. Technical parameters and configuration
