GFCF25UFL Open-Mouth Bagger for Ultra-fine Powder: Enhancing the Quality of Powder Packaging!

 ‌I. Product Core Positioning‌

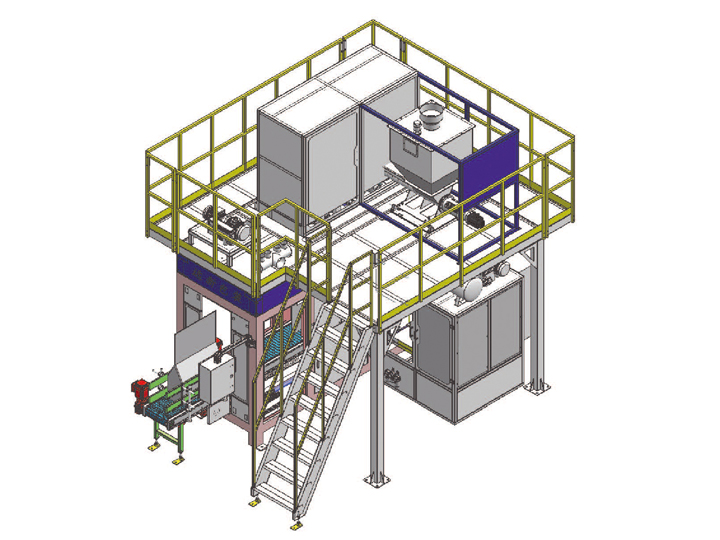

GFCF25UFL Ultra-fine Powder Open-Mouth Bagger is a fully automatic solution designed by the fly-pack factory for ultra-fine powder (particle size ≤50μm) bagging and packaging. It is suitable for high-precision, low-dust packaging needs in the chemical, pharmaceutical, food and other industries. The GFCF25UFL Ultra-fine Powder Open-Mouth Bagger equipment integrates the entire process of weighing → filling → sealing → dust removal. The single machine speed reaches 50-70 bags/hour, and the weighing accuracy is ±0.2%. It supports dust-free filling of 25kg ultra-fine powders (such as nanomaterials, titanium dioxide, and pharmaceutical excipients). The dust overflow rate is ≤0.05mg/m³, meeting the GMP and ISO 14644 clean production standards.

‌ ‌II. Core technology advantages‌

‌ Ultra-fine powder precision metering and anti-blocking technology‌

GFCF25UFL Ultra-fine Powder Open-Mouth Bagger adopts a double-helix vibration feeding system and a high-resolution weighing sensor (resolution ≤ 0.5g) to monitor powder fluidity in real time, dynamically adjust the filling rate and amplitude, and solve the problem of ultra-fine powder being easy to agglomerate and easy to block. The weight error of a single bag is ≤ ± 50g‌.

‌ Dust-free filling and clean production‌

·‌ Fully enclosed negative pressure system‌: GFCF25UFL Ultra-fine Powder Open-Mouth Bagger is equipped with a three-stage dust removal module (filtration efficiency ≥ 99.99%), dust concentration ≤ 0.05mg/m³, suitable for safe packaging of corrosive and flammable powders (such as lithium battery materials). ·‌Quick changeover design‌: GFCF25UFL Ultra-fine Powder Open-Mouth Bagger can complete bag type switching within 15 minutes (supports valve bags and M-shaped gusset bags), with adjustable heat sealing temperature (80-250℃), and is suitable for packaging materials such as PE film and aluminum foil composite film.

‌Modular expansion and intelligent control‌

·‌Functional expansion‌: GFCF25UFL Ultra-fine Powder Open-Mouth Bagger can integrate metal detection, batch traceability coding, and automatic palletizing modules, and supports mixed loading mode (such as 25kg main material + independent small package desiccant).

·‌Energy consumption optimization‌: The intelligent standby mode of GFCF25UFL Ultra-fine Powder Open-Mouth Bagger reduces power consumption by 35%, saving more than 12,000kWh per year, and is suitable for 24-hour continuous production needs.

‌III. Industry application scenarios‌

GFCF25UFL Ultra-fine Powder Open-Mouth Bagger is widely used in the following fields due to its high precision and clean performance:

·‌Chemical industry‌: Moisture-proof packaging of nano calcium carbonate and titanium dioxide, suitable for highly corrosive environments‌.

·‌Medical field‌: Accurate measurement of medicinal lactose and excipients, in compliance with GMP and FDA certification‌.

·‌Food industry‌: Dust-proof filling of ultrafine seasoning powder and additives, supporting high-temperature sterilization process‌.

‌IV. Technical parameters and configuration
